HyppoCoat 250 System

Water-Catalyzed Polyurethane Pedestrian & Vehicular Deck Waterproofing System

HyppoCoat 250 is a liquid applied, high-solids, water-catalyzed polyurethane deck system that creates a seamless, joint-free, tack-free membrane for concrete, wood, and metal surfaces. HyppoCoat 250 is a Class A Fire Rated System by Miami-Dade County.

Water-Catalyzed Polyurethane Trafficable Deck Waterproofing System

HyppoCoat 250 is a liquid applied, high-solids, water-catalyzed polyurethane deck system that creates a seamless, joint-free, tack-free membrane for concrete, wood, and metal surfaces. HyppoCoat 250 is a Class A Fire Rated System by Miami-Dade County.

HyppoCoat PC — Primer Coat

A two component, solvenated, epoxy-polyamine liquid-applied primer with unique penetrating characteristics, low viscosity, and excellent adhesion.

HyppoCoat BC — Base Coat

A non-gassing, solvent-free, single component, liquid applied, water-catalyzed elastomeric polyurethane waterproofing basecoat.

HyppoCoat TC — Top Coat

A two-component, very high solids, fast-setting, rapid curing aliphatic hybrid elastomeric topcoat that can be applied to properly prepared interior or exterior concrete, plywood and metal surfaces.

HyppoCoat 250 can be applied to protect surfaces against spalling, freeze/thaw damage, and chemicals commonly encountered on these surfaces. It is an elastomeric system designed to expand and contract with normal structural movements. It will not soften in heat, nor will it become brittle in the cold.

Applications

  • Plaza Decks
  • Parking Decks
  • Concrete & Plywood Decks
  • Balconies & Breezeways
  • Sloping Decks
  • Pool Decks
  • Concrete Bridges
  • Under-Tile Waterproofing
  • Pond & Tank Liners
  • Mechanical Rooms
  • Concrete Parking Garages
  • Pedestrian Areas

Benefits of the HyppoCoat 250 System

Pedestrian & Vehicular Systems

One system covers both duties, from balconies and breezeways through to concrete parking garages and bridges.

Seamless Application

Liquid applied to a seamless, joint-free, tack-free membrane over concrete, wood and metal surfaces.

Miami-Dade Approval

A Class A Fire Rated System by Miami-Dade County, so it can be specified where that approval is required.

Non-Gassing

The water-catalyzed base coat is non-gassing, avoiding the pinholing and outgassing that plague other polyurethanes.

Solvent Free

A solvent-free, high-solids build, which keeps it viable for enclosed spaces like mechanical rooms and parking structures.

High Tensile Strength

An elastomeric system that expands and contracts with normal structural movement, protecting against spalling, freeze/thaw damage and common deck chemicals. It will not soften in heat, nor become brittle in the cold.

Products in the HyppoCoat 250 System:

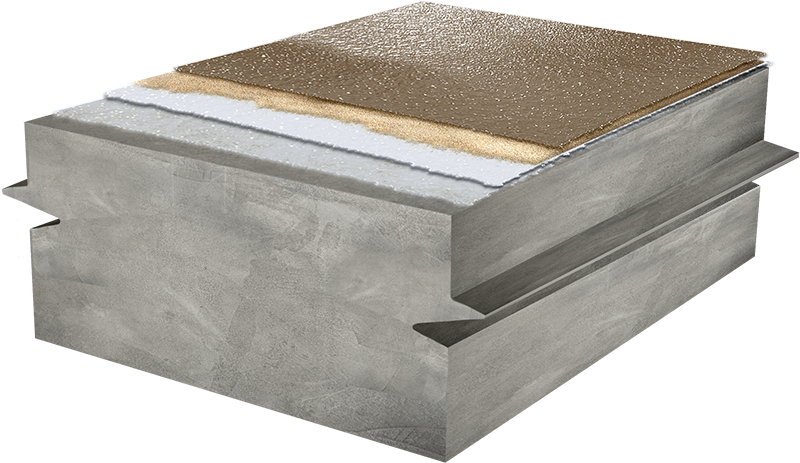

HyppoCoat 250 pedestrian deck assembly with a chocolate top coat
HyppoCoat TC Top Coat View product page
Silica Sand 16-30 Mesh
HyppoCoat BC Base Coat View product page
HyppoCoat PC Primer Coat View product page
Concrete Deck Substrate

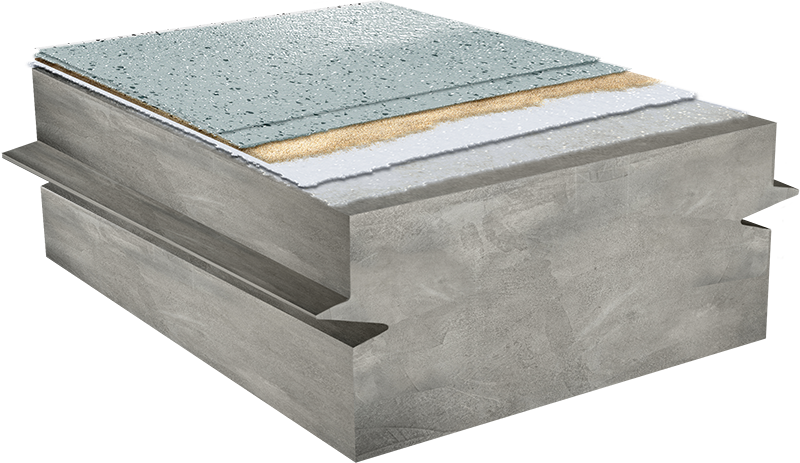

HyppoCoat 250 vehicular deck assembly with a medium gray top coat and rubber aggregate
Flakes/Quartz Optional
HyppoCoat TC 2nd Coat (Optional) View product page
HyppoCoat TC Top Coat View product page
Silica Sand 16-30 Mesh
HyppoCoat BC Base Coat View product page
HyppoCoat PC Primer Coat View product page
Concrete Deck Substrate

Products

Pedestrian

HyppoCoat TC — Top Coat Silica Sand — 16-30 Mesh HyppoCoat BC — Base Coat HyppoCoat PC — Primer Coat Concrete Deck — Substrate

Products

Vehicular

Flakes/Quartz — Optional HyppoCoat TC — 2nd Coat (Optional) HyppoCoat TC — Top Coat Silica Sand — 16-30 Mesh HyppoCoat BC — Base Coat HyppoCoat PC — Primer Coat Concrete Deck — Substrate
